VOC Sensor SGP30 / SGPC3
Ana Sayfa / Ürünlerimiz / Environmental sensors

VOC Sensor SGP30 / SGPC3

  • Particulate Matter Sensor SPS30
  • VOC Sensor SGP40

Kategoriler: Environmental sensors
  • Particulate Matter Sensor SPS30
  • VOC Sensor SGP40
  • Açıklama
  • İnceleme (0)

VOC Sensor SGP30 / SGPC3

For HVAC and Indoor Air Quality Applications

The SGPxx is a digital multi-pixel gas sensor platform designed for easy integration into air purifier, demand-controlled ventilation, and IoT applications.

The SGP30 has been designed for smart home, appliance and Internet of Things applications. It features two calibrated air quality signals and on-chip humidity compensation. In addition, with the SGPC3, Sensirion offers a low power solution that makes reliable gas sensing available for mobile applications.

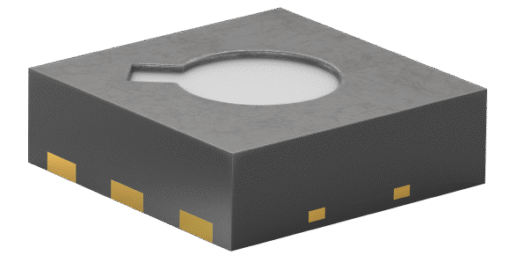

Sensirion’s CMOSens® Technology offers a complete sensor system on a single chip featuring a digital I2C interface, a temperature controlled micro hotplate, and two preprocessed indoor air quality signals. As the first metal-oxide gas sensor featuring multiple sensing elements on one chip, the SGP3x provides more detailed information about the air quality. The sensing element features an unmatched robustness against contaminating gases present in real-world applications enabling a unique long-term stability and low drift. The very small 2.45 x 2.45 x 0.9 mm3 DFN package enables applications in limited spaces. Sensirion’s state-of-the-art production process guarantees high reproducibility and reliability. Tape and reel packaging, together with suitability for standard SMD assembly processes make the SGP30 predestined for high-volume applications.

Sensirion Environmental Sensing Gas Preview

Download Center

Here you can find all documents of Sensirion’s gas sensors for download.


Overview of Sensirion’s Gas Sensors

Product SGP30 SGPC3 SVM30
Output
  • Total VOC in ppb
  • H2-based CO2eq in ppm
  • Total VOC in ppb
  • Total VOC in ppb
  • H2-based CO2eq in ppm
  • Relative humidity
  • Temperature
Supply voltage 1.62-1.98 V 1.62-1.98 V 4.5-5.5 V
Average current 48 mA

Low power mode: 1 mA

Ultra-low power mode: 0.065 mA

49 mA
Package 6-pin DFN
2.45 x 2.45 x 0.9 mm3
6-pin DFN
2.45 x 2.45 x 0.9 mm3
PCB
39 x 15 x 6.5 mm3
Interface I2C 1.8 V I2C 1.8 V I2C 5 V
Indoor Air Quality
Typ accuracy 15% of measured value 15% of measured value 15% of measured value
Output range1 TVOC: 0 – 60’000 ppb
CO2eq: 0 – 60’000 ppm
TVOC: 0 – 60’000 ppb TVOC: 0 – 60’000 ppb
CO2eq: 0 – 60’000 ppm
Sampling rate 1s

 Low power mode: 2s

Ultra-low power mode: 30s

1s
Long-term stability MOXSens® siloxane resistance:
typ 1.3% accuracy drift per year in siloxane accelerated lifetime test
Baseline compensation On-chip baseline compensation algorithm
Humidity compensation Yes2 Yes2 Yes2
Temperature
Measurement range – – –20 °C – 85 °C
Typ accuracy – – ± 1°C
Humidity
Measurement range – – 0% – 100% RH
Typ accuracy – – ± 5% RH
Please note that the above values are of indicatory nature only. For detailed information please consult the respective datasheet.

  • 1 CO2eq output is based on a hydrogen measurement. The SGP is not suited for applications where real CO2 detection is required.
  • 2 To use the humidity compensation feature of the SGP an additional humidity sensor like the SHTxx is required.
