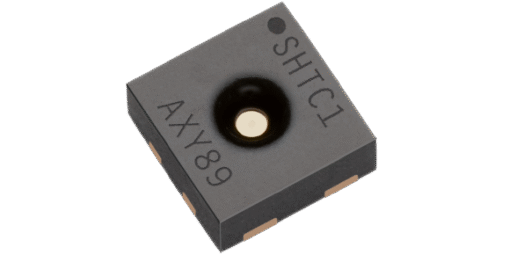

Digital Humidity Sensor SHTC1 (RH/T)
Designed For High-Volume Consumer Electronics Applications
The SHTC1 is a digital humidity sensor designed especially for high-volume consumer electronics applications. This humidity sensor is strictly designed to overcome conventional limits for size, power consumption, and price-performance ratio, in order to fulfill the current and future requirements of the consumer electronics market.
Sensirion’s CMOSens® technology offers a complete sensor system on a single chip, consisting of a capacitive humidity sensor, a band-gap temperature sensor, analog and digital signal processing, A/D converter, calibration data memory, and a digital communication interface supporting I2C fast mode. The ultra-small, 2 × 2 × 0.75 mm3 DFN package enables applications to be placed in even the most limited of spaces. The sensor covers a humidity measurement range of 0 to 100 %RH and a temperature measurement range of –30°C to 100°C with a typical accuracy of ±3 %RH and ±0.3°C.
The operating voltage of 1.8 V and an energy budget below 1 µJ per measurement make the SHTC1 suitable for mobile or wireless applications running on the lowest power budgets. With the industry-proven quality and reliability of Sensirion’s humidity sensors and constant accuracy over a large measurement range, the SHTC1 humidity sensor offers an unprecedented price-performance ratio. Tape and reel packaging together with suitability for standard SMD assembly processes make the SHTC1 predestined for high-volume applications.
|Name||Typ. Humidity Accuracy %RH||Typ. Temperature °C||Supply Voltage V||Interface||Package Size (L x W x H) mm||Datasheet||Buy|
|SHTC1||±3.0%||±0.3||1.62 to 1.98 V||I2C||2 x 2 x 0.75||Download|
|Supply voltage||1.8 V|
|Power consumption||2µW (at 1 reading per second in low power mode)|
|Measuring range (RH)||0 – 100% relative humidity|
|Measuring range (T)||-30 to +100°C (-22 to +212°F)|
|Response time (RH)||8s (tau63%)|
|Packaging||Tape & Reel, sealed in ESD bags|
Minimum order quantity
1’000 or 10’000 pieces per reel
